Image with statistical information - Egon - 2020-02-08

Hello,

I am currently developing a new image for the detector data with statistical informtion of the last 4 weeks. The image should help to recognized interference times and other probems.

Here is an exampl of my detector

https://map.blitzortung.org/statistic_1.php?station=2656$region=1&minutes_composed=10

Parameters are
station
region
minutes_composed
header_line 0/1 switches the heading off / on
header_text 0/1 switches the color explanations on / off
drawing_area_height 1-300 defines the scale height.
weeks 1-4 limits the display to the last weeks
time_zone -11/12 adjust the rtime scaling to local time
background_transparent 0/1 set background color to transparent

Greetings,
Egon

RE: Image with statistical information - dupreezd - 2020-02-09

Thanks Egon, really cool and I can see it being very helpful.

By modifying the URL for my station and region, I was able to view my graph.

Regards

Dries

RE: Image with statistical information - Egon - 2020-02-09

Here are some additional parameters:

header_line 0/1 switches the heading off / on
header_text 0/1 switches the color explanations on / off
drawing_area_height 1-300 defines the scale height.
weeks 1-4 limits the display to the last weeks

here's an example:

https://map.blitzortung.org/statistic_1.php?station=2656&region=1&weeks=3&header_line=0&header_text=0&minutes_composed=30&drawing_area_height=50

/Egon

RE: Image with statistical information - mwaters - 2020-02-09

Thank you, Egon!  Smile

(2020-02-09, 02:50)dupreezd Wrote: By modifying the URL for my station and region, I was able to view my graph.

Sure enough!
https://map.blitzortung.org/statistic_1.php?station=1977&region=3&weeks=4
My green line on 1977 is over 100%. Is that just a bug that needs to be worked out?
However, 2294 is not over 100%. https://map.blitzortung.org/statistic_1.php?station=2294&region=3&weeks=3

Dries, your green graph is even higher than mine. https://map.blitzortung.org/statistic_1.php?station=2100&region=3&weeks=3. I wonder what that means.

RE: Image with statistical information - dupreezd - 2020-02-09

(2020-02-09, 19:15)mwaters Wrote: Dries, your green graph is even higher than mine. https://map.blitzortung.org/statistic_1.php?station=2100&region=3&weeks=3.  I wonder what that means.

I don't think it means anything Smile . My guess is a scaling factor of the graph.

Dries

RE: Image with statistical information - Eric.Wouters - 2020-02-10

interesting, and some storm coming over Europe .. see how it behaves  Cool

RE: Image with statistical information - kevinmcc - 2020-02-13

Super awesome Egon. I can not wait!

RE: Image with statistical information - gerbold - 2020-03-06

Hello Egon,

many thanks for the statistics diagram. In general it works quite well, but at the moment the four weeks are full, there seems to be old data displayed in the newest day.

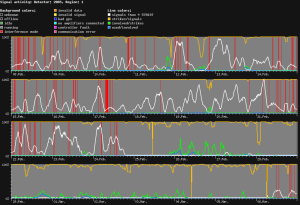

I took a screenshot today at 6 AM and found data being displayed for the entire day until midnight. See the bottom right corner of the diagram, the time vexong 6 AM.


Cheers
Klaus

RE: Image with statistical information - cutty - 2020-03-06

past wk

RE: Image with statistical information - mwaters - 2020-03-06

(2020-03-06, 16:16)cutty Wrote: past wk

Wow! How much of that was done in a graphics editing program? I'd like to see my stations automatically displayed on the same page like this!
